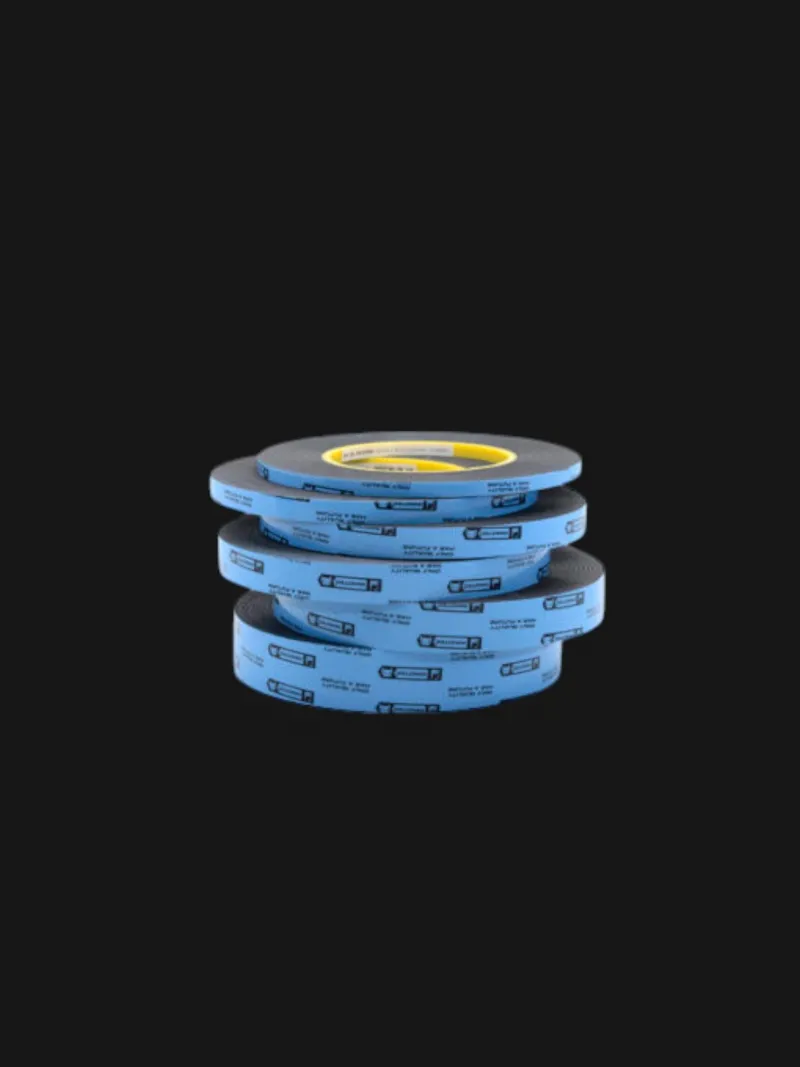

Moulding Tape 9mm x 10m (Specify size below)

Moulding Tape 9mm x 10m (Specify size below) image 1
Roll over the image to zoom
banner left image
Promotion

Free Shipping with Premium Products

Add any premium product to your basket and get free shipping for the whole order

Ships in 3-4 working days

Moulding Tape 9mm x 10m (Specify size below)

SKU:IN-05.2309.0000-MOTP-X-BL-00
£21.59 £17.99 (ex. VAT) Ships in 3-4 working days
partners icon

Moulding Tape is a double-sided adhesive tape made from rubber. The special layer of glue on the tape is pressure sensitive. The advantage with this is that the part to be glued can be repositioned easily time and again, without sticking too securely. When positioned in the right place the final adhesion can be obtained by pressing firmly.

Moulding Tape is resistant to temperatures between -40°C and +95°C. As a result of this and its perfect adhesion Moulding Tape is very good in absorbing the difference in expansion coefficient between the different materials. The dense cell structure means that the tape absorbs almost no moisture and is resistant to diesel and light chemicals.

This combination of properties ensures that Moulding Tape is extremely well suited to applying emblems, bumpers, sign postings, etc.

Due to the pre-cut sizes of 6 mm, 9 mm, 12 mm, 15 mm, 19 mm and 25 mm, Moulding Tape can be used without further processing for just about all common shapes and sizes of emblems, strips, etc.


Compatability

Easy to apply and process.

Can be corrected within a short time (± 5 minutes).

Resistant to temperatures of -40°C to +95°C.

High tensile strength.

Resistant against: water, weak caustic solutions, weak acids and the effects of weather.

No more in stock
Option
  • Base: Cross linked PUR foam of close cell structure with high-quality modified acrylic adhesive on both sides of the foam
  • Density: 550 kg/m³
  • Dimensions: 6 mm x 0,8 mm x 10 m
  • Hardness: 28 (Shore A)
  • Tensile strength: 1,0 N/mm²
  • Elongation at break (%): 220%
  • Shear strength: 0,7 N/mm²
  • Peel strength: 9 N/cm
  • Temperature resistance: -40°C to +95°C
  • Peak temperature resistance: +150°C (short-time limit)
  • Water resistance: Good. Maximum water absorption: 2,5%
  • Solvent resistance: Reasonable. Also resistant to light chemicals and diesel oil.
  • Tests: Cold shock resistant to -40°C
  • Application conditions: +15°C to +30°C
  • Type of surface: On almost every smooth surface
  • Surface preparation: The surface must be clean, dry and free of grease. Clean surfaces with Innotec Multisol or Innotec Seal and Bond Remover.
  • Application method: Apply straight from the roll and press firmly. Remove protective film and join both parts carefully. Parts can be repositioned within 5 minutes. When the parts are correctly aligned press firmly (for example with the Innotec Blade for Striping) to activate the pressure sensitive glue layer. Maximum adhesion after 24 hours.
  • Correction time: Maximum 5 minutes
  • Cleaning of hands: With Innotec Power Scrubs or with Innotec Safe Hand Clean Plus and water
  • Shelf life: 1 year in original, unopened packaging
  • Storage conditions: Store cool and dry, at a temperature between +5°C and 20°C
  • Type of batchcode: F
  • EAN Code: 5400563026472
  • Surface preparation: The surface must be clean, dry and free of grease. Clean surfaces with Innotec Multisol or Innotec Seal and Bond Remover.
  • Application method: Apply straight from the roll and press firmly. Remove protective film and join both parts carefully. Parts can be repositioned within 5 minutes. When the parts are correctly aligned press firmly (for example with the Innotec Blade for Striping) to activate the pressure sensitive glue layer. Maximum adhesion after 24 hours.
