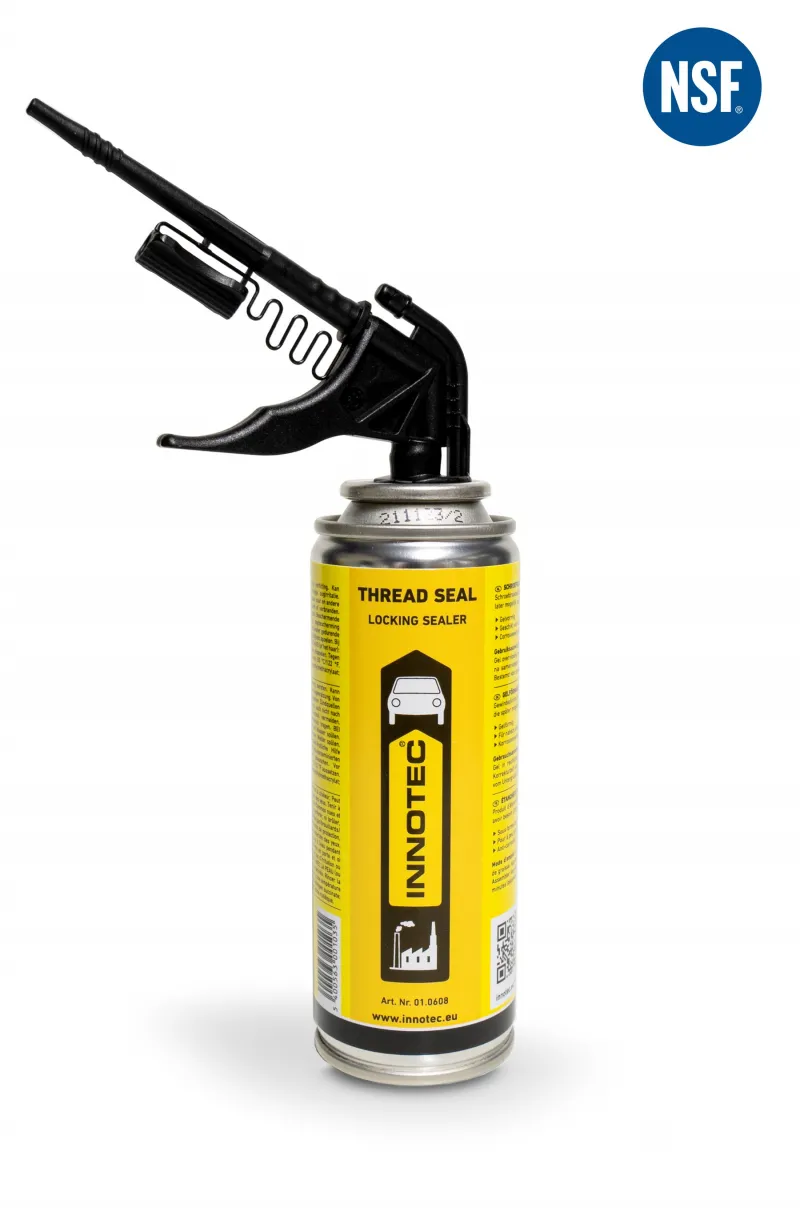

Thread Seal

SKU:IN-01.0608-THR-X-W-61
£37.19 £30.99 (ex. VAT) Delayed Shipping
partners icon

Thread Seal is a many-sided thixotropic thread sealer with PTFE for connections of compressed air and liquid transport pipes. Suitable for almost any type of screw thread.

Thread Seal is the perfect solution for the quick and professional sealing of threaded connections, thereby allowing later dismantling. The product not only creates a reliable seal, it also protects the thread surface against corrosion, as a result of which later dismantling can be performed quickly, easily and without causing damage.

This thread sealing product based on methacrylate compounds with PTFE additives cures very quickly by anaerobic reaction in the presence of metal acting as a catalyst. Therefore, it is capable of carrying loads almost immediately after mounting (hermetic seal).

In its unique packaging Thread Seal is not only user-friendly, but also easy to apply and to dose with precision. The product is perfectly locked up in its can preventing it from being contaminated, as a result of which quality remains optimal.


No more in stock
Thread Seal 100ml
  • Base: Methacrylate ester
  • Consistency: Thixotrope
  • Viscosity: 20.000 - 30.000 mPa.s
  • Flash point: > 100°C
  • Temperature resistance: -60°C to +155°C
  • Moisture resistance: Excellent
  • Chemical resistance: Good chemical resistance within the application area (data available from your advisor)
  • Application conditions: +5°C to +25°C
  • Type of surface: Nearly all metal surfaces, ferrous and non-ferrous metal, galvanised metal and copper
  • Surface preparation: The surface must be clean, dry and free of grease. Clean surface with Innotec Multisol, Innotec Ultra Clean or Innotec Power Clean.
  • Application method: Apply a liberal amount of the product directly from the packaging to one of the parts to be sealed.
  • Correction time: 10 to 15 minutes, depending on the type of substrate:
    - pure copper and aluminium have a positive influence on the reaction speed
    - passive materials such as inox / stainless steel can extend the correction time or open time
  • Drying time: Initial adhesion strength after 15-30 minutes. Capable of carrying loads after 1-3 hours. Final strength achieved after 3-6 hours.
  • Filling capacity: 0,40 mm
  • Turn loose moment: 10 - 15 Nm (M10) according to DIN 54454
  • Cleaning of materials used: With Innotec Multisol
  • Cleaning of hands: With Innotec Power Scrubs or with Innotec Safe Hand Clean Plus and water
  • Shelf life: 1 year in original, unopened packaging
  • Storage conditions: Store cool and dry
  • Type of batch code: F
  • Other details: Maximum thread diameter: 76,9 mm (> 3 inch)
    Not suited for pressurized oxygen-rich systems.
  • Certificate type: This product has the following certificates:
    • WRAS (no. 2103566)
      This certificate is only valid if the product is cured for 15 minutes at 25°C or for 24 hours at 22°C.
    • NSF (no. 164630)
    • DVGW (no. NG-5146DM0499)
    • DIN EN 751-1
  • EAN Code: 5400563001035
  • Gel-based thread sealer.
  • Unique packaging allowing precise dosing.
  • Universally applicable thanks to certifications such as DIN EN 751-1, WRAS (register no. 2103566), NSF (register no. 164630) and DVGW (register no. NG-5146DM0499).
  • Optimal shelf-life.
  • Only 1 product for almost all types of fine and coarse threads.
  • Cost-reducing; often removes the need for PTFE tape, flax, hamp.
  • Can be used for threaded connections between metals, plastics and ceramics, provided that 1 of the products is a metal (catalyst).
  • Easy to use in all positions (also upside down).
  • Protects against corrosion.
  • Reliable connection without using additional primers or activators.
  • Surface preparation: The surface must be clean, dry and free of grease. Clean surface with Innotec Multisol, Innotec Ultra Clean or Innotec Power Clean.
  • Application method: Apply a liberal amount of the product directly from the packaging to one of the parts to be sealed.
