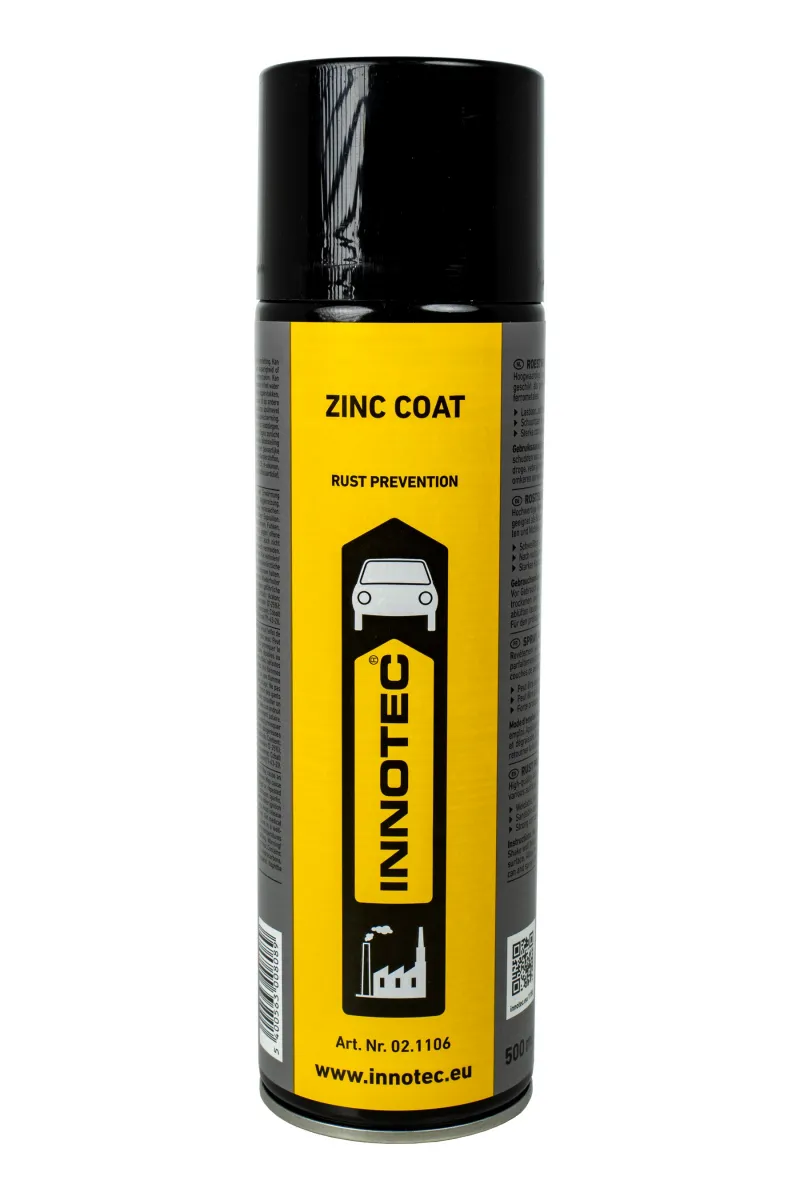

Zinc Coat is a special rust-preventing coating made from zinc. The product can be used before and after welding. Zinc Coat provides a protective layer which can be CO2 and spot welded.
During welding Zinc Coat will not spatter and will burn only minimally. This guarantees a very high level of protection.
Due to the addition of epoxy the product provides a unique top layer, which can serve, once it is hard, as a base layer for just about every sealant and paint system.
Zinc Coat offers excellent adhesion and perfect cover.
Thanks to its aerosol packaging Zinc Coat is extremely user-friendly and easy to apply.
- Weldable, even with CO2.
- Sandable after full curing.
- Paintable with almost all modern paint systems.
- Strong corrosion protection on metal surfaces.
- Base: Zinc phosphate primer on alkyd resin base
- Density: 770 kg/m³
- Consistency: Liquid (ready-to-use in aerosol)
- Solvents: Mixture of aromatic and aliphatic solvents
- Flash point: < 0°C
- Temperature resistance: -50°C to +150°C
- UV resistance: Good
- Water resistance: Excellent
- Solvent resistance: Moderate
- Tests: Excellent resistance to corrosion: salt water spray test: 800 hours (3%)
- Application conditions: +15°C to +30°C (relative humidity: 70%)
- Type of surface: Ferrous and non-ferrous metal, countersunk steel and sanded old paint layers
- Surface preparation: The surface must be clean, dry and free of dust and grease. Sand the surface. Clean surfaces with Innotec Multisol.
- Application method: Shake can well during at least 2 minutes before use. Spraying distance 20-25 cm. Apply in 2 criss-cross layers, allowing the product 10 minutes to evaporate in between. Can be welded when fully cured. After use invert can and spray until clear to clean the nozzle.
- Dust dry: 5-20 minutes (at 20°C)
- Curing time: 30 hours (at 23°C / 60% relative humidity / 80µ layer thickness)
- Recommended layer thickness: 2 criss-cross layers (± 80-100µ - dry)
- Sandability: After full cure, Zinc Coat can be sanded both wet and dry.
- Paintability: After full cure, Zinc Coat can be painted over using just about any modern paint system. Due to the huge variety of paint types on the market, it is best to test the paint beforehand.
- Cleaning of materials used: With Innotec Multisol
- Cleaning of hands: With Innotec Power Scrubs or with Innotec Safe Hand Clean Plus and water
- Shelf life: 2 years in original, unopened packaging
- Storage conditions: Store cool and dry
- Type of batchcode: F
- EAN Code: 5400563008089
- Surface preparation: The surface must be clean, dry and free of dust and grease. Sand the surface. Clean surfaces with Innotec Multisol.
- Application method: Shake can well during at least 2 minutes before use. Spraying distance 20-25 cm. Apply in 2 criss-cross layers, allowing the product 10 minutes to evaporate in between. Can be welded when fully cured. After use invert can and spray until clear to clean the nozzle.
